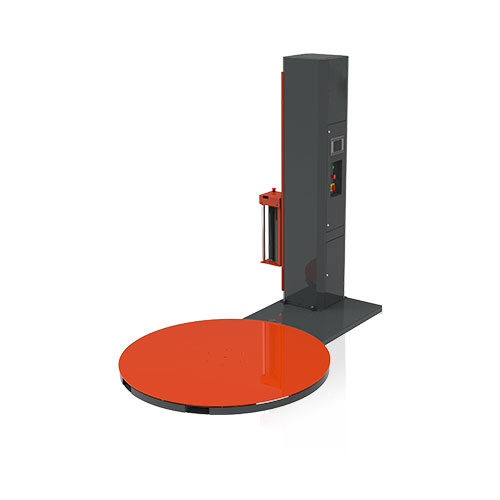

MP206 Semi-auto Pallet Wrapper Mechanical Brake offers the best value for factory operators to increaseworker efficiency and reduce labor.
>> PLC controlled, easy wrapping program setting.
>> Both one touch automatic programs and manual run are available.
>> Turntable speed & carriage speed adjustable on panel.
>> Turntable stop start & stop.
>> Turntable home position.
>> Automatic detection of pallet height by photocell.
>> Open type carriage for easy film threading.
>> Carriage driven by dual chain system.
Wrap speed: 30 – 40 pallets/hour
Turntable diameter: 1500mm
Turntable speed: 3 - 15rpm
Max load weight: 2000kgs
Wrapping height: 2100mm
Turntable height: 82mm
Carriage type: mechanical brake, 150% ratio
Wrapping settings: wrap cycles /top wraps /bottom wraps /overwrap
Carriage speed: 5 meters/min max
Turntable motor: 0.75kw
Carriage lifter motor: 0.37kw
Power: 1PH 220VAC, 50/60Hz
Film type: stretch film thickness 17-35microns, width 450-500mm, paper core 76mm, max weight 18kgs
1. Turntable diameter 1650mm, 1800mm, or 2000mm
2. Wrapping height 2400mm or 2600mm
3. Access ramp for loading

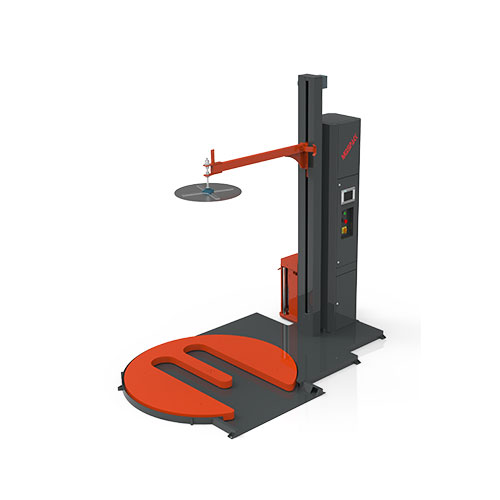

4. Turntable could be M-shaped

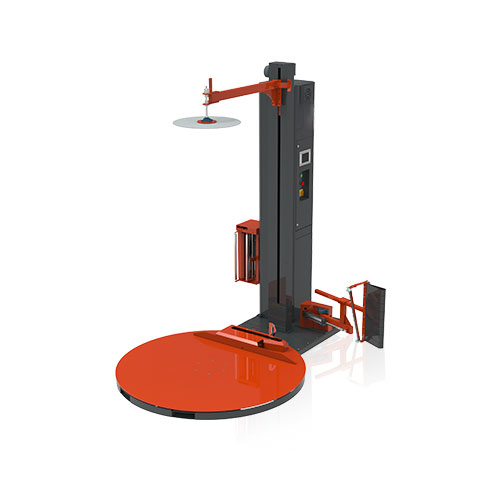

5. Top platen driven pneumatically for light products
6. Ring bearing structure turntable for extra heavy loads.
