PRODUCT > SEMI AUTO CARTON FLAP FOLD SEALER

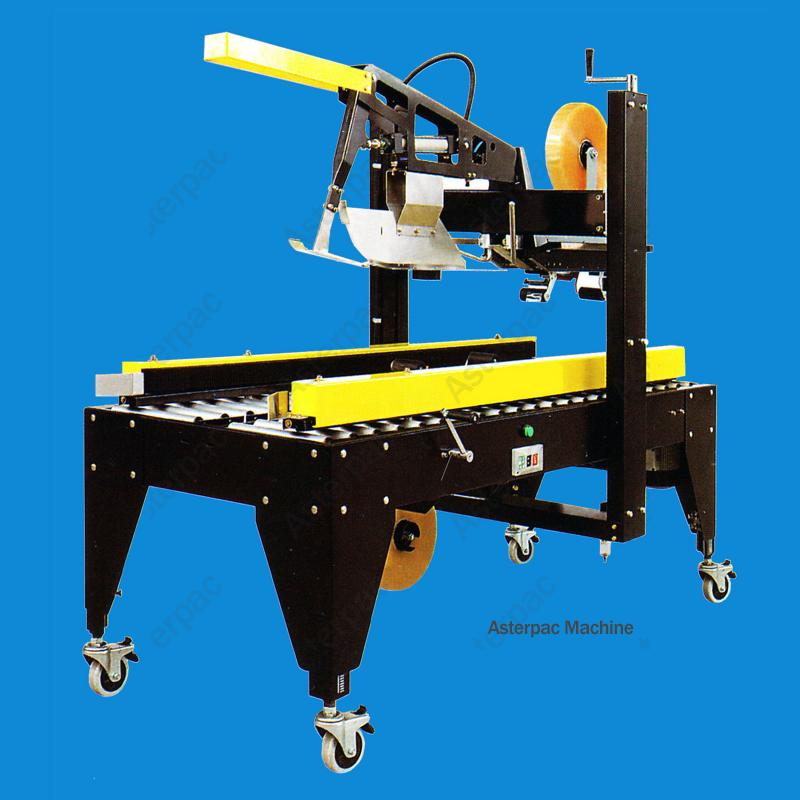

Carton Sealing Machine - Semi-Automatic Flap, Fold, Carton Sealer

RPC-05T

Carton Sealer Machine | Carton Sealing Machine | Semi Automatic Flap | Folding Carton Sealer

FEATURES ⇒

♦ Fit for sealing uniform size carton in mass production line.
♦ Automatic flaps folding &, top & bottom sealing.
♦ Side belts driven, suitable for heavy duty operation.

SPECIFICATION ⇒

Model	RPC-05
Carton size (L x W x H)	200~600 x 150~500 x 120~500 mm
Table height	min. 650 ~ max. 800 mm
Belt speed	15.8 m/min
Power (can specified by client)	110/220V, single phase, 50/60 Hz
Pneumatic	5 kg/cm²
Tape width	48, 60, 75 mm (alternative use)
Machine dimension (L x W x H)	1,690 x 830 x 1,180 mm
Machine net weight	approx. 180 kgs
