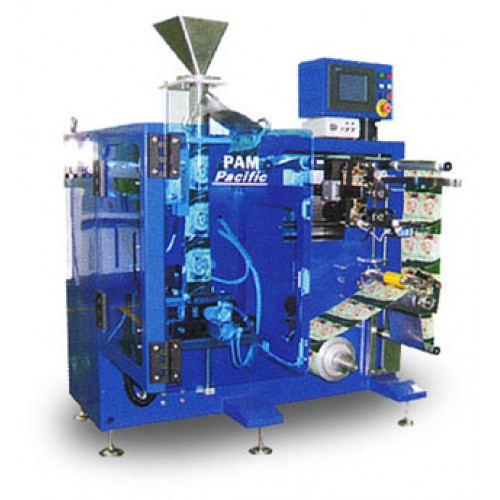

Multi sealer/pillow & 3 or 4-side/pyramid pouch convertible
vertical form-fill-seal packaging machine
Model : PVH-1000Model : PVH-1000
| Features | |
| - | Interactive 5.7" LCD touch panel display allows for easy & friendly operation |
| - | Film draw down system in controlled by servo motor. |
| - | Simple, functional, low maintenance construction. |
| - | Convertible for 3 or 4-side and pillow with a imple arrangement of the horizomtal seal jaws. |
| - | Lower electric power consumption. |
| Specifications | |||
 |
|||
| Applications | Milk powders, Coffee, Nuts, Frozen food, Etc. | ||
 |
|||
| Capacity | Max 55 bags / min | ||
|
|||
| Bag size | Width 45~100mm | ||
|
|||
| Length 40~150mm | |||
|
|||
| Pyramid Pouch Width 45-80mm | |||
|
|||
| Film material | Laminated films, Auminium films, Paper films , Etc |
||
|
|||
| Power source | 3PH, AC380V, 4.0KW | ||
|
|||
| Air consumption | 200 Nl/min, 0.6MPa | ||
|
|||
| Machine size | 1200W x 1500L x1600Hmm | ||
|
|||
| Machine weight | Approx. 700kg | ||
