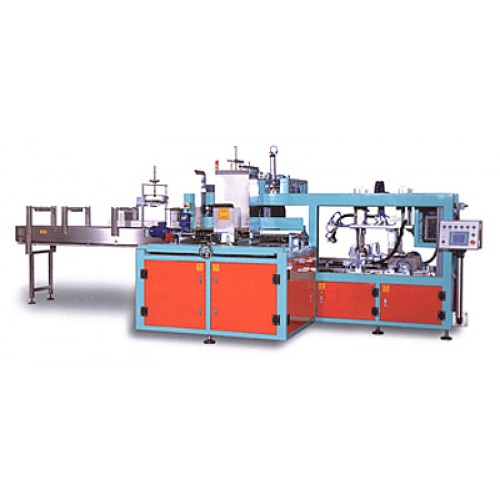

Wrap Around Packing Machine
Model : SFA-2125-L
| Specifications | |||
 |
|||
| Carton size | (L) 200-600 (W) 150-500 (H) 150-500 mm | ||
 |
|||
| Table height | 650 (min) 780 mm (max) | ||
|
|||
| Working speed | 450 ctns/hr | ||
|
|||
| Machine size | (L) 1170 (W) 910 (H) 1570 mm | ||
|
|||
| Power | 220V/380V single phase, 50/60HZ or, specified by client | ||
|
|||
| Pneumatic | 5kg/cm² | ||
|
|||
| Tape width | 48mm, 60mm, 75mm (alternative use) | ||
|
|||
| Machine net weight | approx 230kgs | ||
| Feature | |
| - | Man-machine interfase screen control. |
| - | Automatic error massage display proides convenient shooting trouble. |
| - | Applicable for wrapping various products, such as Tin plate can, PVC bottle, PET bottle and Glass bottle. |
| - | Fully Wraparound carton packaging and tray packaging operation. |
| - | Parameters can be set and modified on the screen, |
| - | Scale provided for machine adjustment permits recording and convenience for adjustment. |
| - | Indexing transmission system eliminates inaccurate packing problem. |
| - | Glue spraying is calculated by encoder, ensuring consistent glue spraying length on each carton and permits adjustment and memorizing at any time. |
| - | Fast set up for various sizes. |
| - | All movable parts are provided with grease nozzle for lubrication. Hard-to-reach bearings located at the machine bottom are centralized lubrication at outside through oil tubes. |
| - | Applicable Products: Tin plate can, PE bottle, PP bottle, Glass bottle and Aluminum foil box. |
